PDL6100/10B
A

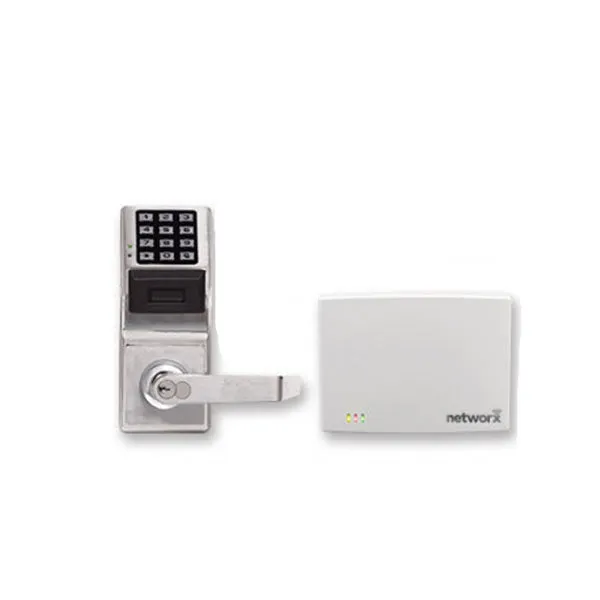

DETAILS: ALARM LOCK PDL6100/PDL6175 NETWORX CYLINDRICAL PIN/PROX LOCK
PDL6100/PDL6200- Prox and digital cylindrical lock supporting 5,000 PIN user codes (3-6 digits), and/or HID
Proximity cards. 500 scheduled events and 35,000 event audit log.
Features
- Provide all standalone Trilogy lock functionality plus new network-wide and emergency lockdown features
- 5000 users with 3-6 digit PINs or HID ID cards
- Flexible System Monitoring, Control & Programming
- Unsurpassed 5-year battery life, typical, using 4 C-cell off-the- shelf batteries (supplied)
- Grade 1 durability, rugged clutch mechanism and weatherproof for use inside or out
- PDL6100 with built in HID prox reader accepts most HID Proximity cards and keyfobs; DL6100 has keypad only; Prox only model available
- Door Position Switch/Request to Exit, specify model PDL6200/PDL8200. Real time access, must be used in Enterprise Software Integration with Continental Access, Lenel or Software House
Specifications
- Door Thickness
- Fits 1 518" to 1 7/8"
- Backset
- 2 3/4" (2 3/8" also available. Must specify when ordering)
- Strike
- 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike Included
- Latch bolt
- UL, Listed, fire rated 3 hours, 112" throw, reversible
- Handing
- Non-handed
- Power
- 4 C-cell batteries (included)
- Keypad
- All metal, 12 button. Basic functions programmed through keypad
- Door Prep
- Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
- Compliances
- BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
- Cylinder
- 6 pin solid brass. SCY1 keyway furnished with all key override locks Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can he used with the FINN 620 tailpiece (supplied)
- Interchangeable Core Models
- Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schalge
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
AVAILABLE MODEL NUMBERS AND COMBINATIONS
| Model/SKU | Attributes |
|---|---|
| PDL6100/10B | Duranodic, Standard key Override, Straight Lever |
| PDL6100/26D | Satin Chrome, Standard key Override, Straight Lever |
| PDL6100IC/10B | Duranodic, Interchangeable Core (BEST, FALCON, ARROW, KSP), Straight Lever |
| PDL6100IC/10B-S | Duranodic, Interchangeable Core (SCHLAGE), Straight Lever |
| PDL6100IC/26D | Satin Chrome, Interchangeable Core (BEST, FALCON, ARROW, KSP), Straight Lever |
| PDL6175IC/10B-S | Duranodic, Interchangeable Core (SCHLAGE), Regal Curved Lever |
| PDL6175IC/26D-S | Satin Chrome, Interchangeable Core (SCHLAGE), Regal Curved Lever |
