Product Description
-
Six-zone system pre-amplifier,with single or dual channel operation
-
Two input channels for call stations
-
Universal input for microphone/line,with speech optimized tone control
-
Three inputs for BGM selection and music optimized tone control
-
Front panel zone selection for BGM and call station zone selection for calls
-

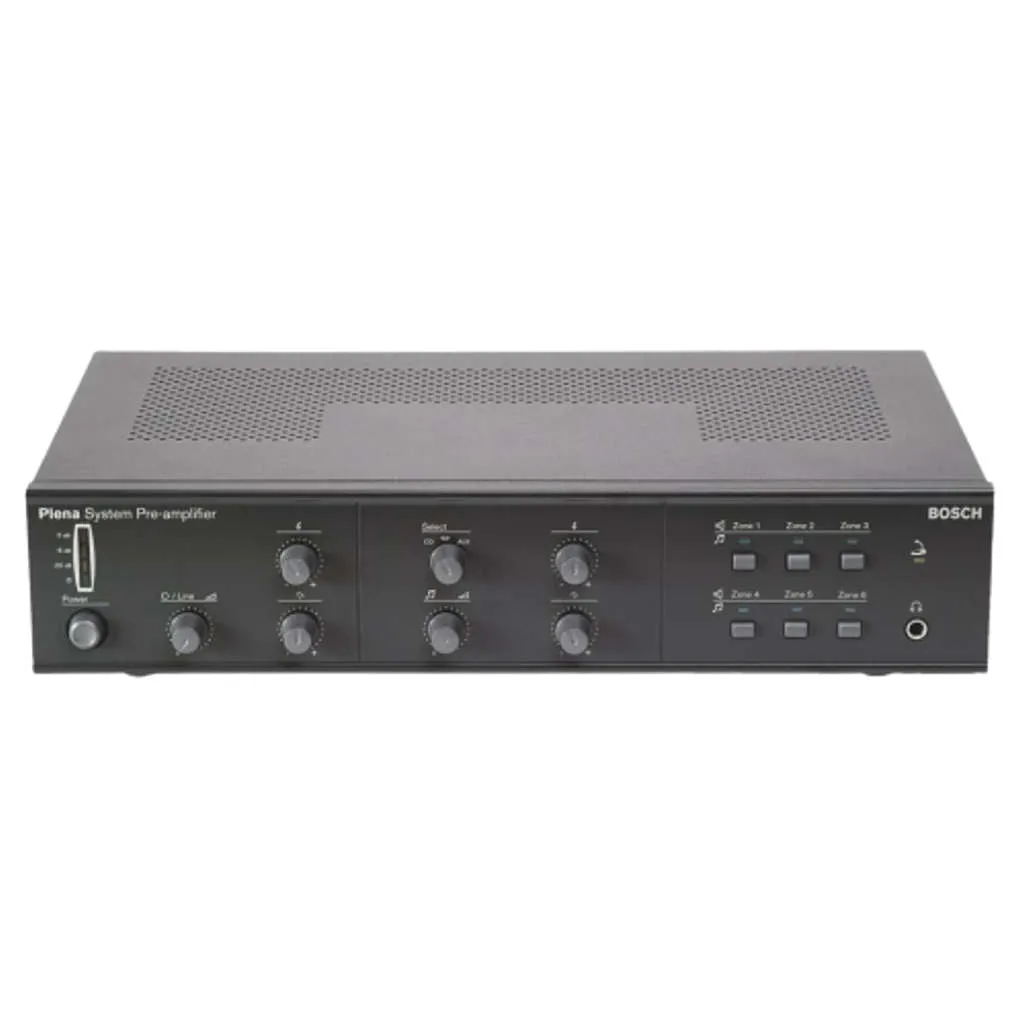

The Plena system pre-amplifier is a versatile,high-performance unit with call and mono BGM (background music)
-
It fulfills a wide variety of public address requirements at a surprisingly low cost
-
It can provide dual channel operation for simultaneous calls and BGM for up to six different zones,using two Plena amplifiers
-
Functions
-
The call channel provides two inputs for the Plena call stations,LBB 1941/00 (all-call) or LBB 1946/00 (six-zone),with loop-through capability,and universal,balanced input
-
One is a 3-pin XLR connector for microphone or line level (selectable),and the other is a 5-pin DIN-connector with all-call priority contact,which may also be used to start one of the available chime attention signals
-
The microphone input has a selectable speech filter for improved intelligibility,a volume control,and bass and treble tone controls with shelving characteristics optimized for speech
-
The call channel is available on the balanced XLR master output
-
The BGM channel provides three inputs on stereo cinch-connectors, converted to mono,with front panel selection,volume control and bass and treble tone controls with shelving characteristics optimized for music
-
The BGM channel has a direct output on balanced XLR for dual channel operation
-
It can also feed the master output,with the lowest priority,for single channel operation
-
Zone selector switches on the front panel control the BGM routing
-
An overload protected 24 VDC output provides power for driving external relays,often making an external power supply unnecessary
-
An emergency/telephone input with signal level detector (VOX) and volume preset has the highest priority to all zones
-
Two trigger inputs (contact closure) activate alarm or time signals to pre-selected zones
-
Many different chime tones are available
-
A PC audio input with RS-232 control provides software controlled zone configuration,or automatic messaging in combination with the LBB 1965/00 Plena Message Manager
-
There are six levels of priority available for BGM,microphone,call stations, trigger inputs and emergency input
-
A set of relays directs the amplifier output(s) to different loudspeaker groups (zone switching)
-
Each zone has a tri-state control on the front panel that can turn it off, switch it to the call channel,or to the BGM channel
-
The all-call microphone input and emergency activation override the call station selection on the call channel
-
Each zone has separate priority overrides with preset volume levels
-
This assures an appropriate message volume,independent of any local volume settings,such as for BGM
-
Both three-wire and four-wire override schemes are supported
-
An override also activates a voltage-free contact (call-active) available for external control and monitoring
-
The master output channel,or one of the input channels,can be monitored through the headphone connector and/or the LED VU-meter
-
Controls And Indicators
-
Front
-
LED power meter
-
Power on LED
-
Call active LED
-
Three knobs for mic/line volume, treble, and bass levels
-
Three knobs for BGM volume, treble, and bass levels
-
BGM source selection knob
-
Six zone-selections keys
-
Six zone status LEDs
-
On/off switch
-
Back
-
EMG input volume control
-
Mains voltage switch
Interconnections -
Front
-
Headphone jack
-
Back
-
One (DIN or XLR) Mic/line input
-
Two (DIN/DIN) call station inputs
-
PC audio (cinch) input
-
Priority input
-
Master (XLR) output
-
BGM (XLR) output
-
Emergency signal input
-
Two trigger inputs
-
RS-232 (DE-9)
-
Three (cinch) CD, tape, aux inputs
-
Six 100 V speaker outputs
-
24 VDC output
-
24 VDC input
-
Three control inputs
-
Ground screw
-
IEC mains socket
