Product Details
＋

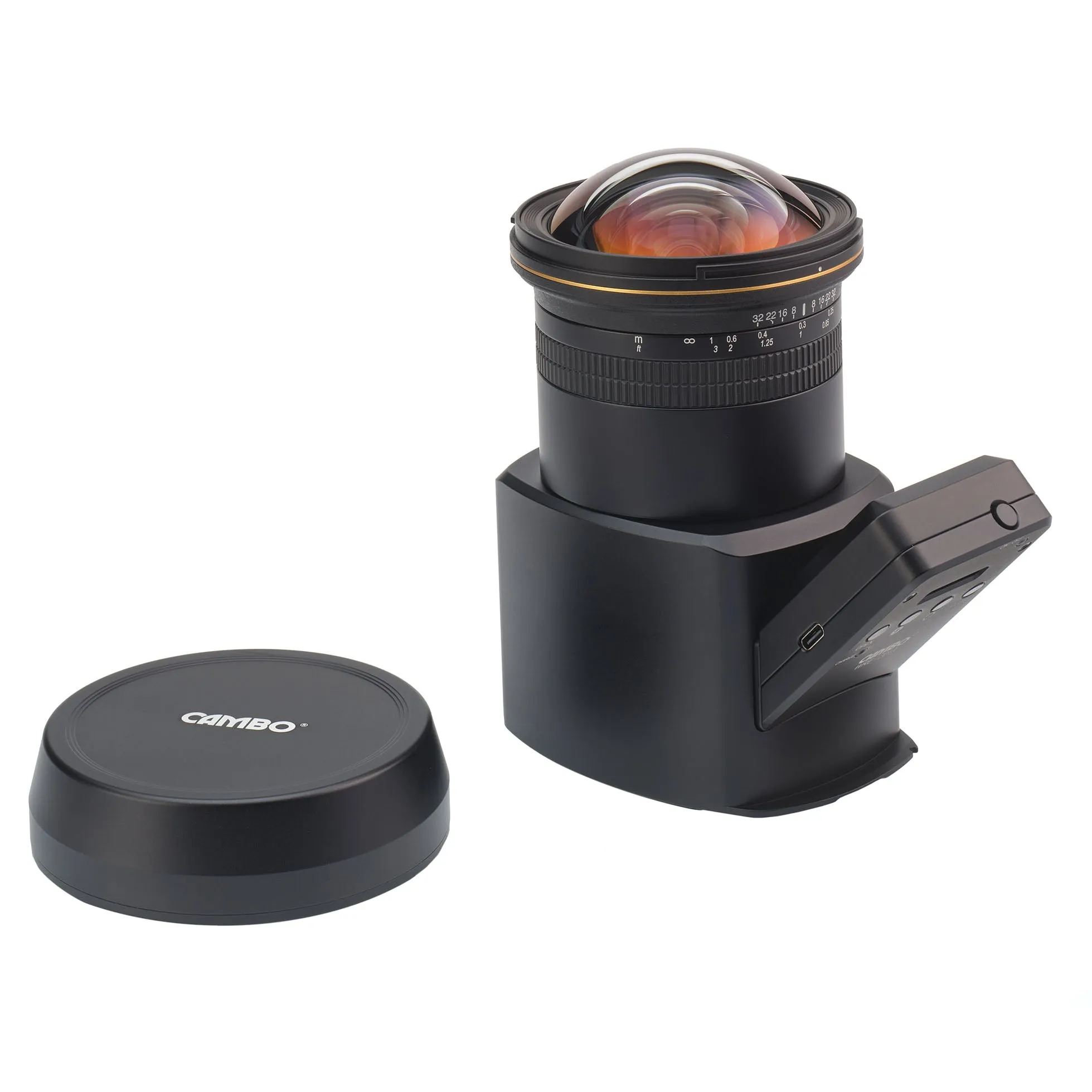

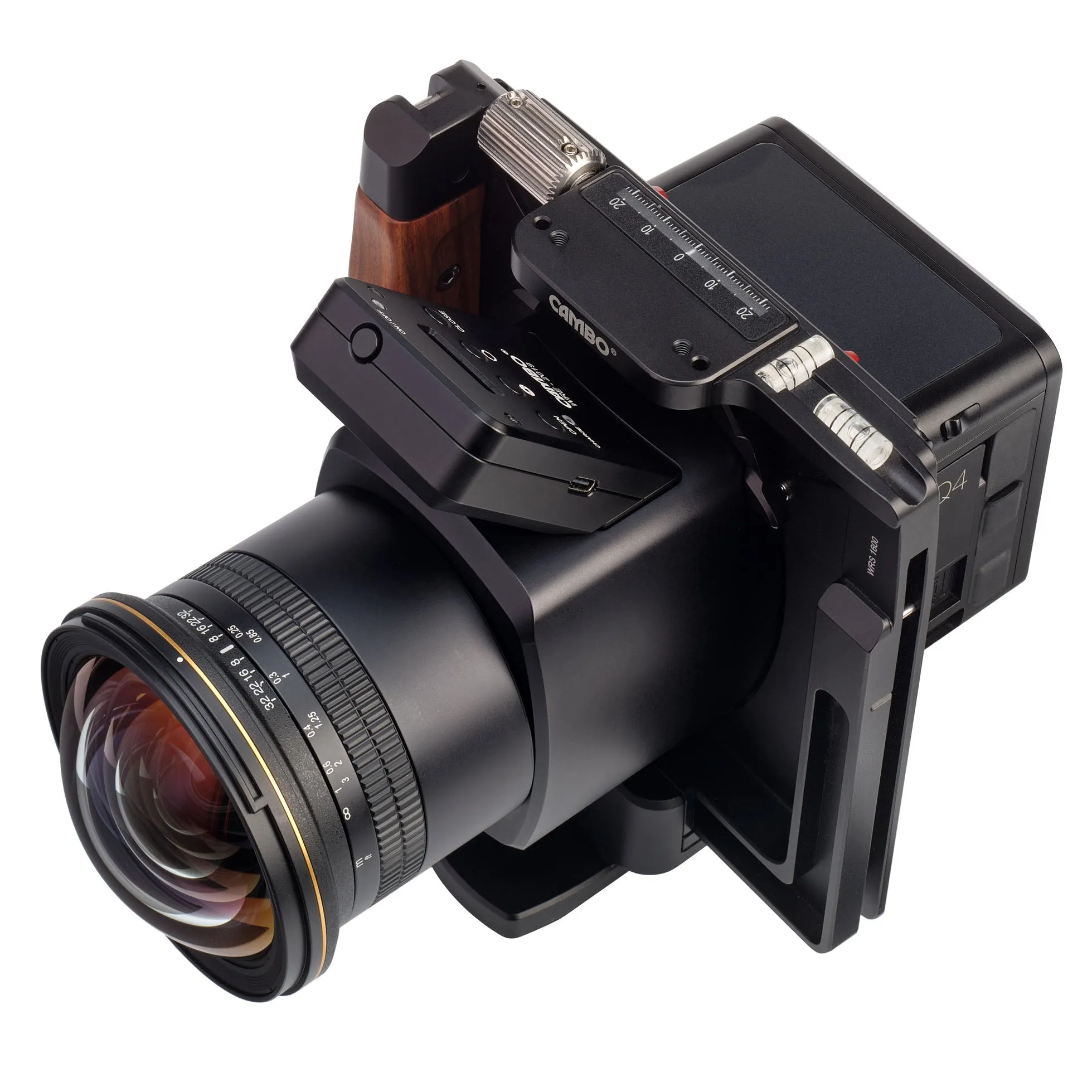

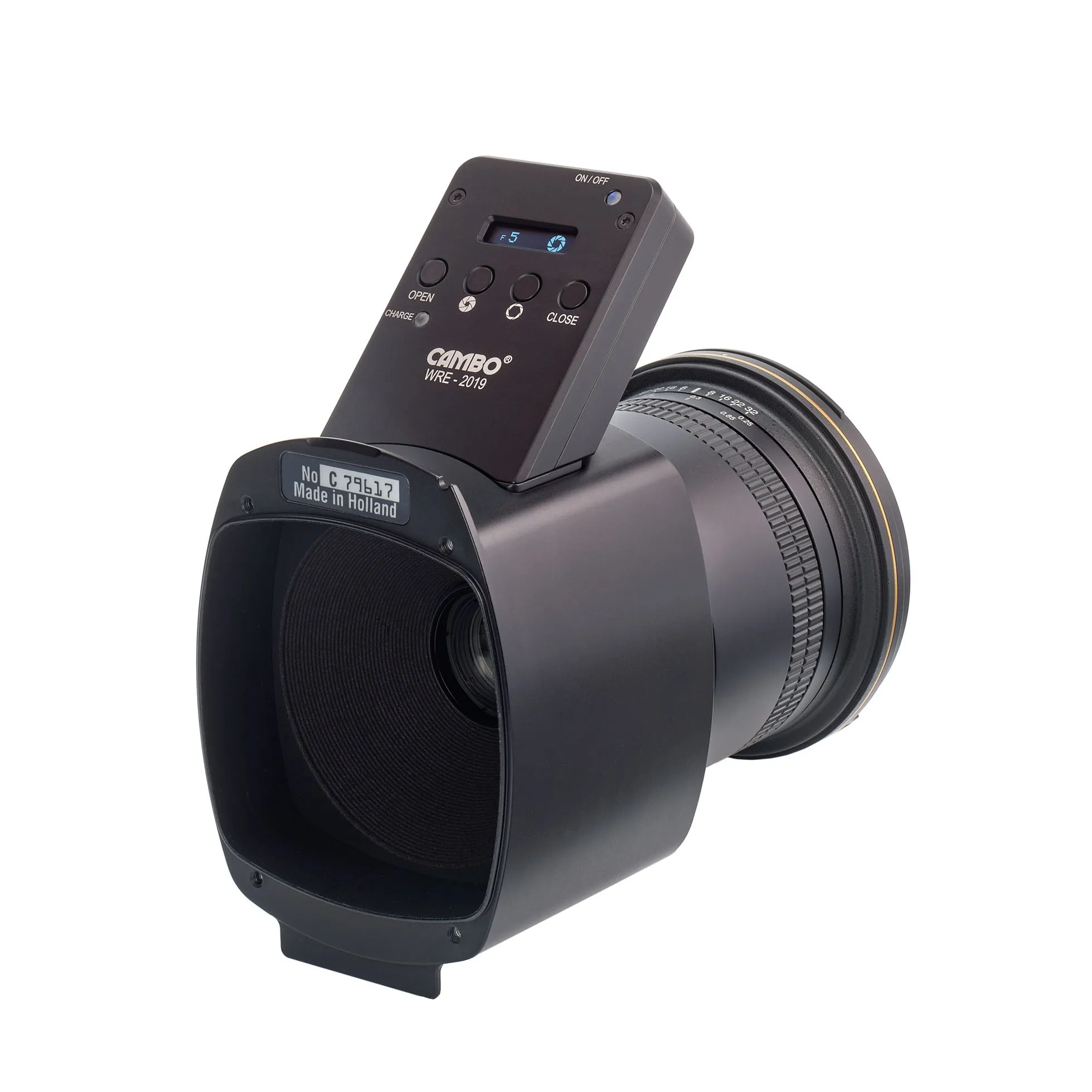

We made the optical parts from Nikon's PC-19 available for use on Cambo WRS and Phase One XT technical cameras. The lens has been rehoused and fitted with a controller for the electronical aperture. The image circle is large enough to cover the sensor of an IQ3/IQ4 back and still permits about 4mm of shift. Edge-to-edge sharpness is excellent.
Since the lens has no leaf shutter, one has to rely on the On-Sensor shutter as used in digital backs like Phase One IQ3/IQ4 and the Hasselblad CFV-II 50c.
Image circle of lens at f/8: 71mm
Optical Movements:
CCD size 33x44mm: 12/10 mm
CCD size 40x54mm: 4/3 mm
Camera Movements:
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
