Product Details
＋

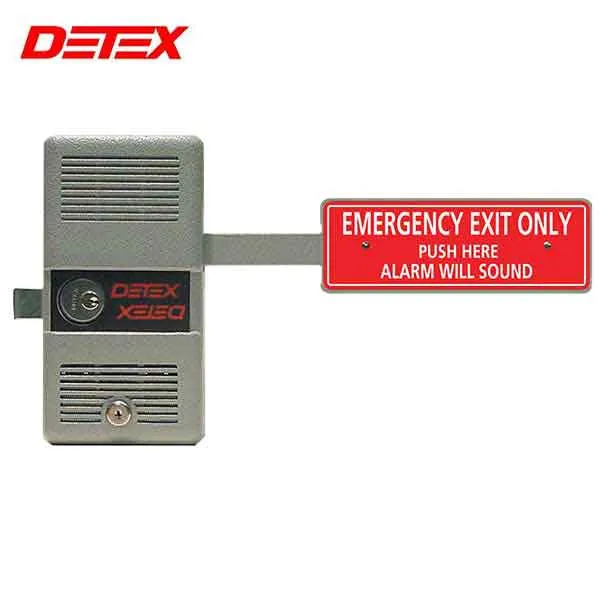

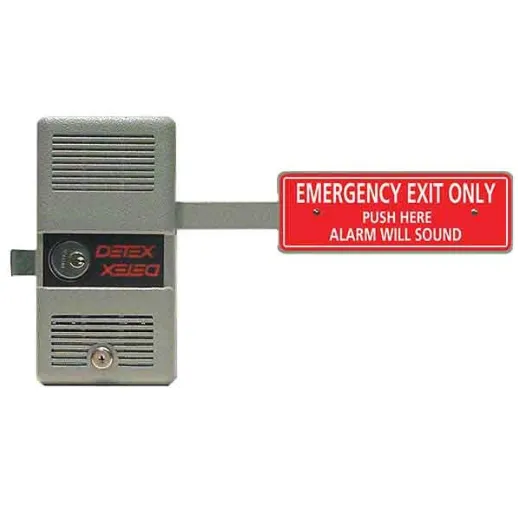

The ECL-230D is code compliant, battery alarmed, rugged dead bolt, panic devices with steel plate and photo-luminescent sign providing managed security and a 100-decibel alarm for secondary exits. ECL-230D by DETEX
RIM Cylinder not included
- Single point, 1" throw deadbolt
- Saw resistant deadbolt
- Corrosion-resistant alloy lock body
- 100 decibel alarm, powered by 9-volt battery (included)
- Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
- Resetting the alarm can only be accomplished with a control key
- Non-handed
- Locking and unlocking the deadbolt always arms and disarms the alarm
- Gray Finish
Specifications
Minimum Standard Door Width |
20" |
| Screws |
Machine & Sheet metal |
| Battery |
9VDC |
| Application | Providing managed security and a 100 decibel alarm for secondary exits |
| Finish | Gray |
Installation:
Battery Change:
Downloads
