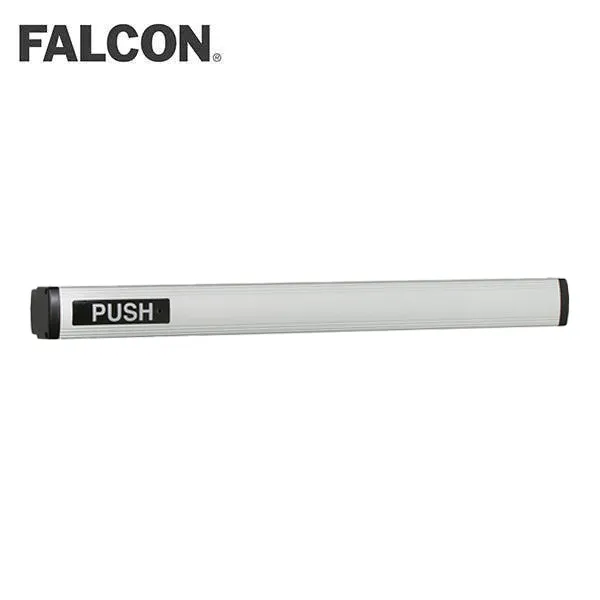

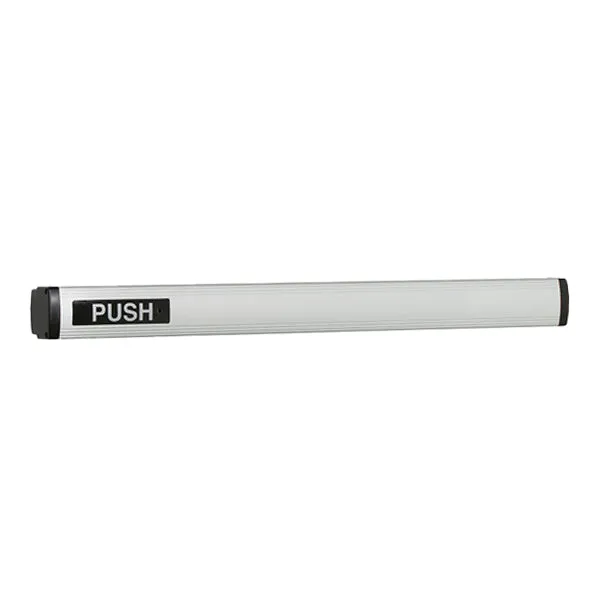

The 1490/1590 Series narrow stile touch bar exit devices provide safe and reliable egress ideal for 1-3/4 In—aluminum doors. The 1490 Series concealed vertical rod is designed for double-door applications, while the 1590 Series rim device is designed for single-door applications. The 1490 Series is certified to ANSI/BHMA A156.3 Grade 1 standards. Both products boast a 10-year limited warranty. The 1490/1590 Series are electrified to interface with building security systems. They are also suitable for retrofit applications with interior and exterior doors in commercial, multi-family, office, and retail installations. For coastal code requirements, the 1490 Series exit devices provide a hurricane-rated door opening with select door manufacturers (consult the door manufacturer for more details). Hardened steel latch bolts and sturdy aluminum push bars enhance toughness.
Features:
- Built with steel operating mechanisms for durability
- Hardened steel latch bolts and sturdy aluminum push bars enhance toughness
- 1490 Series: certified to ANSI A156.3 Grade 1 standards
Specifications:
| Device Length | 36 In. |
| Dogging Feature | Quarter turn hex dogging standard. No threaded parts to wear out. |
| Doors | 1 3⁄4" thick metal doors |
| Fasteners | All mounting screws are concealed. Uses all machine screws for the device and latch. |
| End caps | Durable zinc die-cast, powder-coated |
| ANSI | Certified ANSI A156.3 2001 Grade 1 standards. |
| High Security | 1490 High Security devices are used for hurricane-rated door openings. |
| Stile | 1 3⁄4" minimum |
| Doors | 1 3⁄4" thick metal doors |
| Strikes | PB48 Top |
| Fire Rated | No |
| Device Type | Concealed Vertical Rod |
| Electric Options | Electric Latch Retraction |
| Include Trims | No |
| Physical Appearance | Pushpad |
| Handing | Left Hand |
| Package Height | 3.25 |
|
Package Length |
47.5 |
|
Package Width |
5.25 |
|
Color |
Satin Aluminum Clear Anodized |
|
Warranty |
10-year manufacturer's limited warranty |
