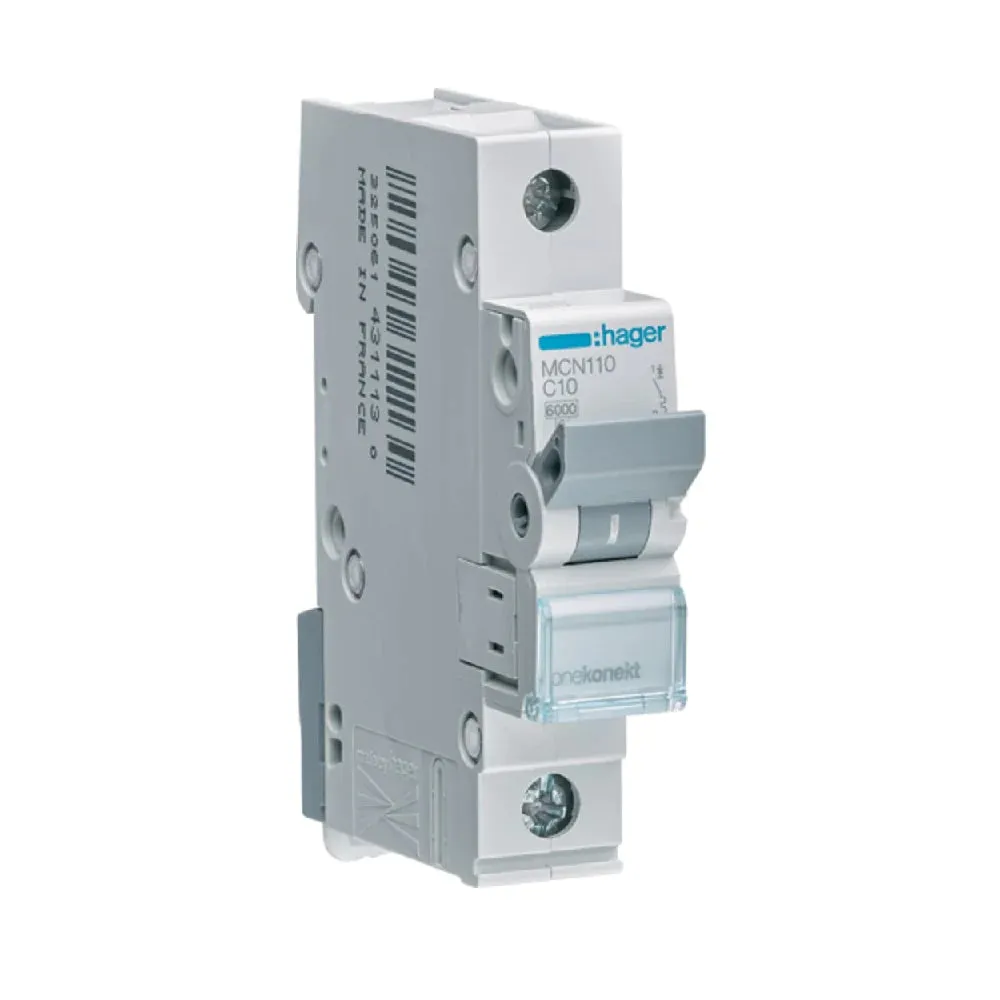

MCB 1P 6kA C-10A 1M

Technical Characteristics close all Architecture Neutral position: without neutral Number of protected poles: 1 Number of poles: 1 P Type of pole: 1 P Fixing mode: Din-Rail Curve: C Controls and indicators With fault indicator: no Connectivity Bottom connection alignement for modular devices: Aligned terminal Top connection alignement for modular devices: Aligned terminal Main electrical features Frequency: 50/60 Hz Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA Type of supply voltage: AC Rated operational voltage Ue: 240/415 V Voltage Rated insulation voltage: 500 V Rated impulse withstand voltage: 4000 V
