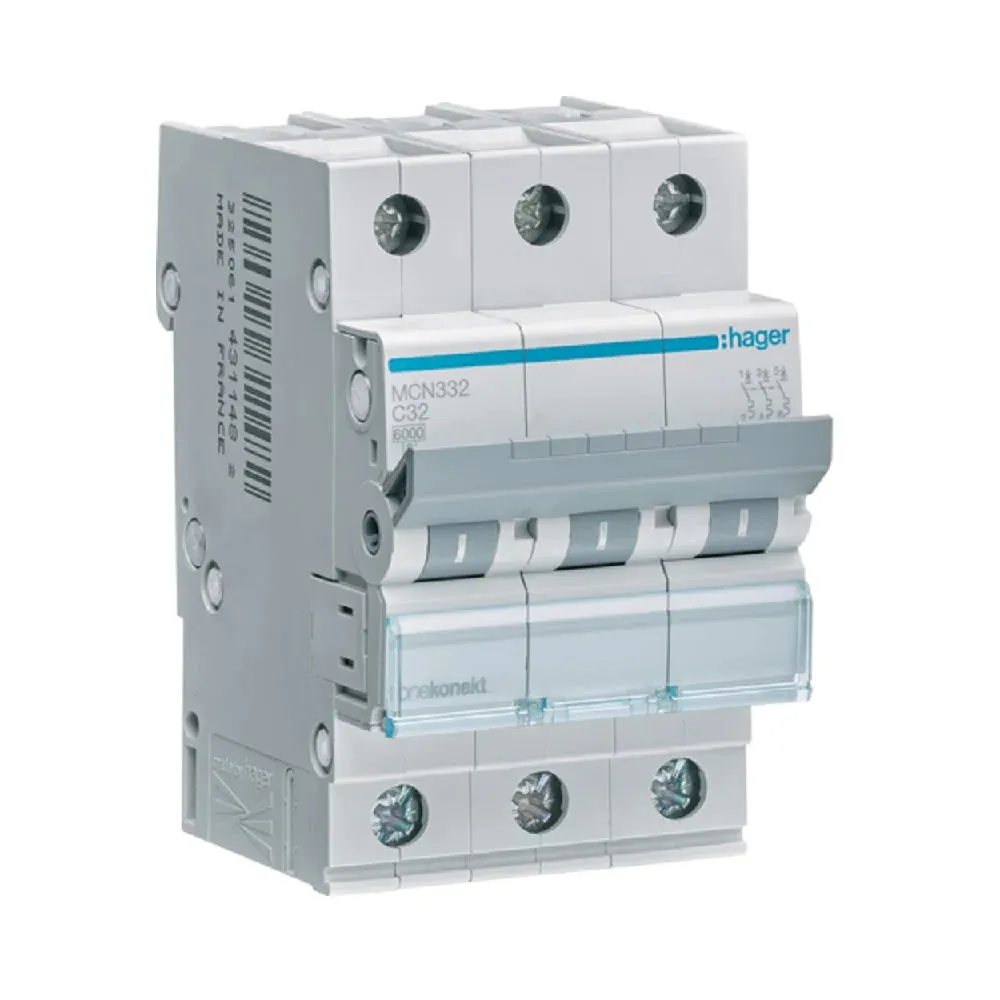

MCB 3P 6kA C-32A 3M

Technical Characteristics close all Architecture Neutral position: without neutral Number of protected poles: 3 Number of poles: 3 P Type of pole: 3 P Fixing mode: Din-Rail Curve: C Controls and indicators With fault indicator: no Connectivity Bottom connection alignement for modular devices: Aligned terminal Top connection alignement for modular devices: Aligned terminal Main electrical features Frequency: 50/60 Hz Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA Type of supply voltage: AC Rated operational voltage Ue: 415 V Voltage Rated insulation voltage: 500 V Rated impulse withstand voltage: 4000 V Electric current Rated short circuit breaking capacity Icn under 400V AC according IEC60898-1: 6 kA Rated service breaking capacity Ics AC according IEC 60898-1: 6 kA Magnetic regulating currrent at 40° C: 5/10 In min/maxi threshold value of the AC thermal operation: 1,13/1,45 In
