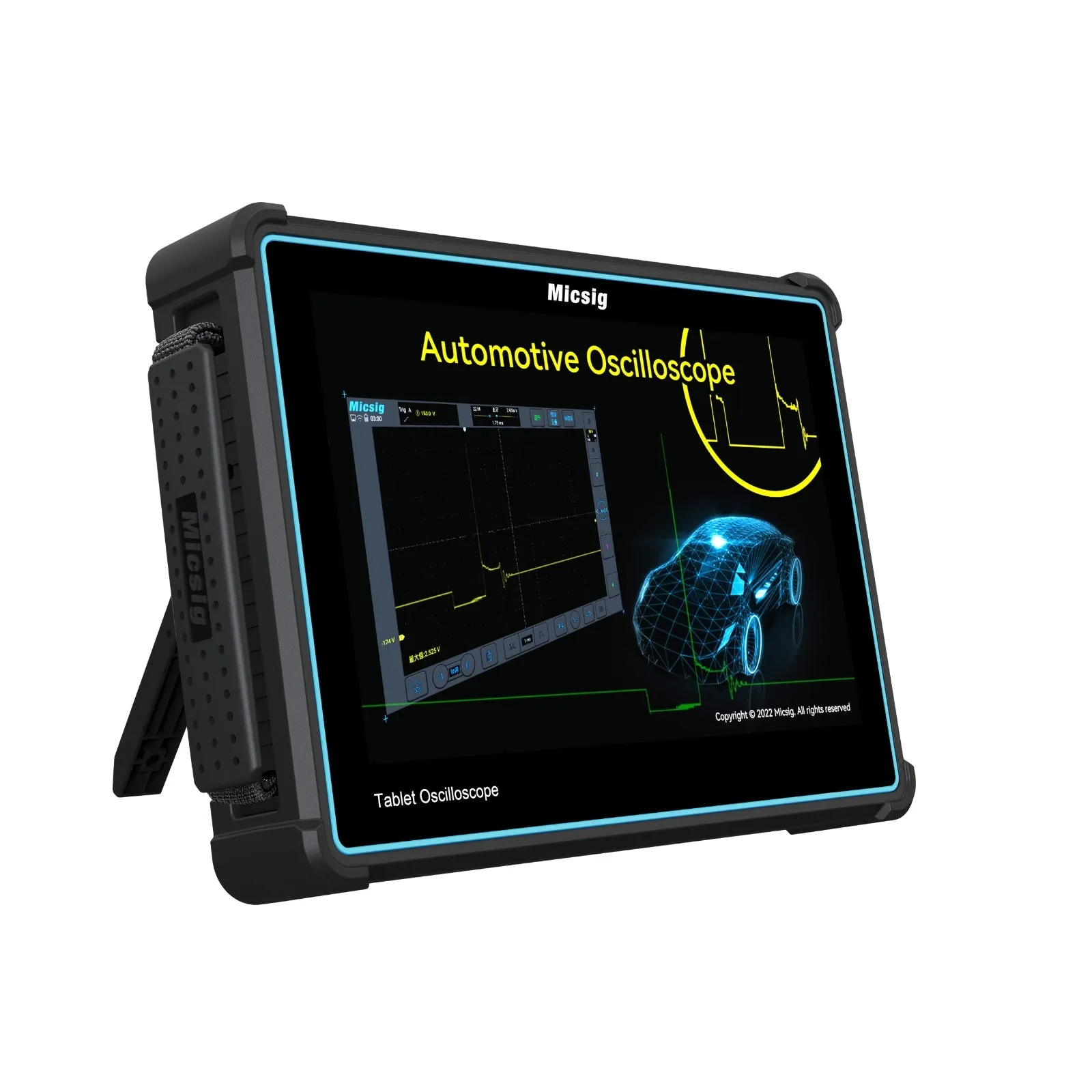

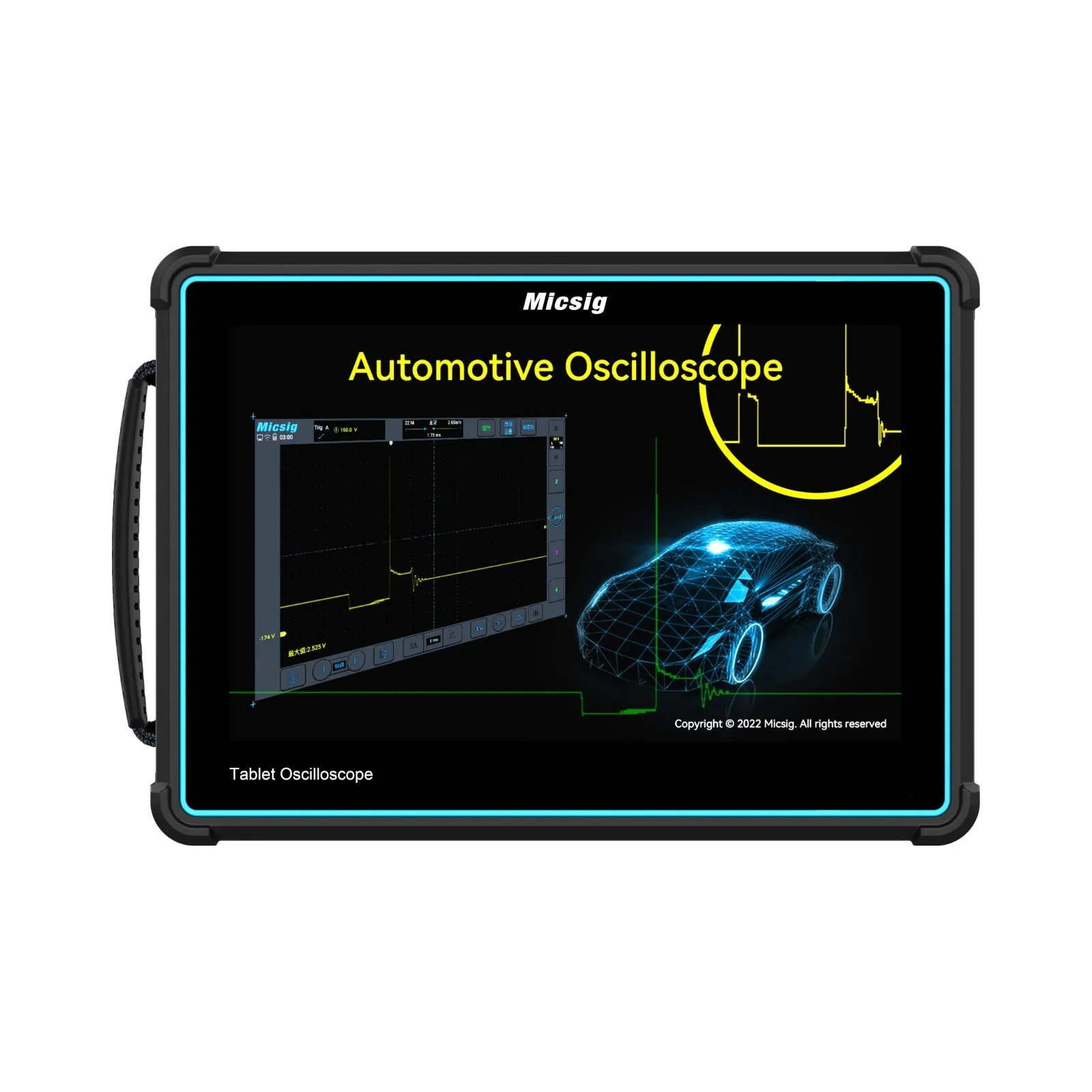

Micsig Digital Automotive Tablet Oscilloscope ATO1004

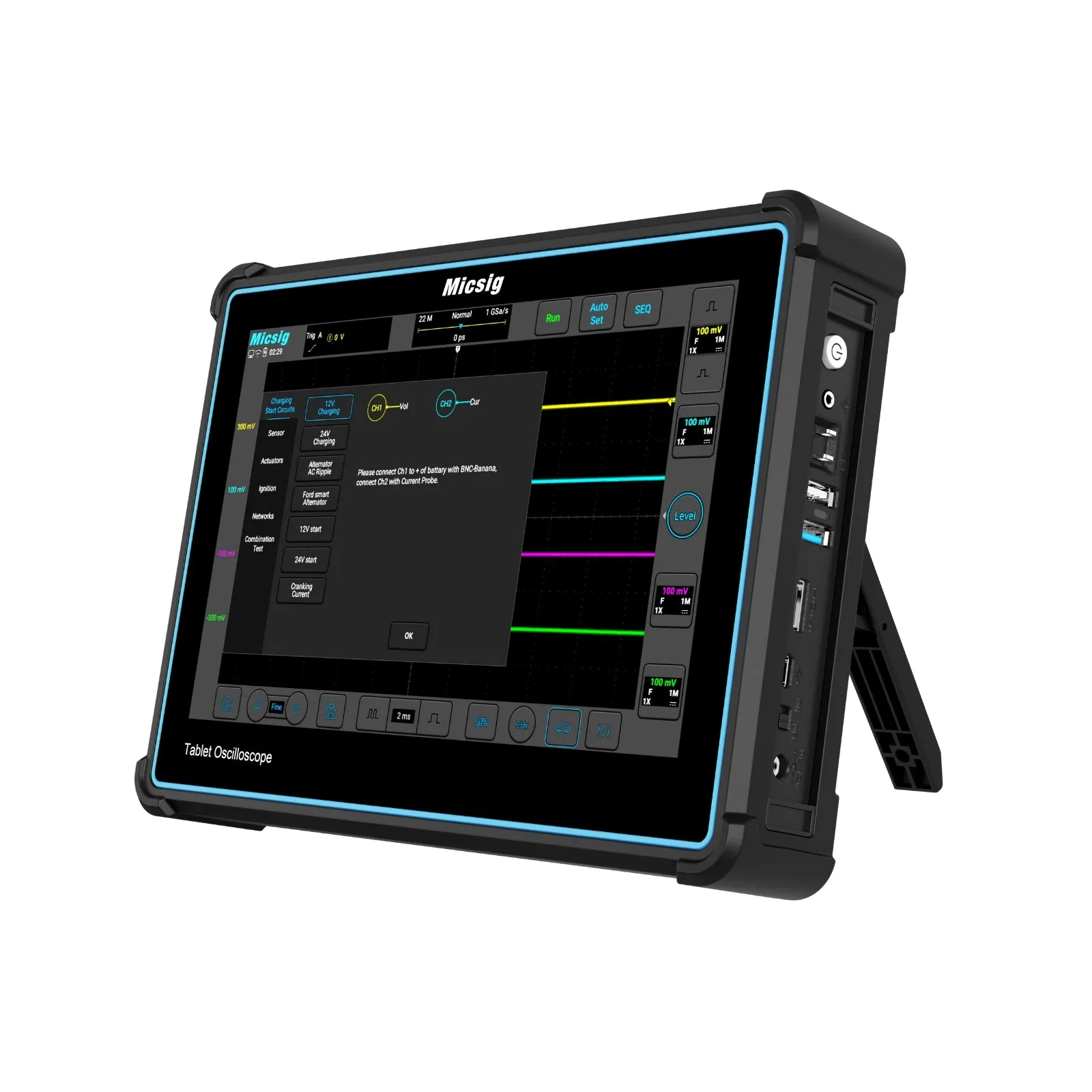

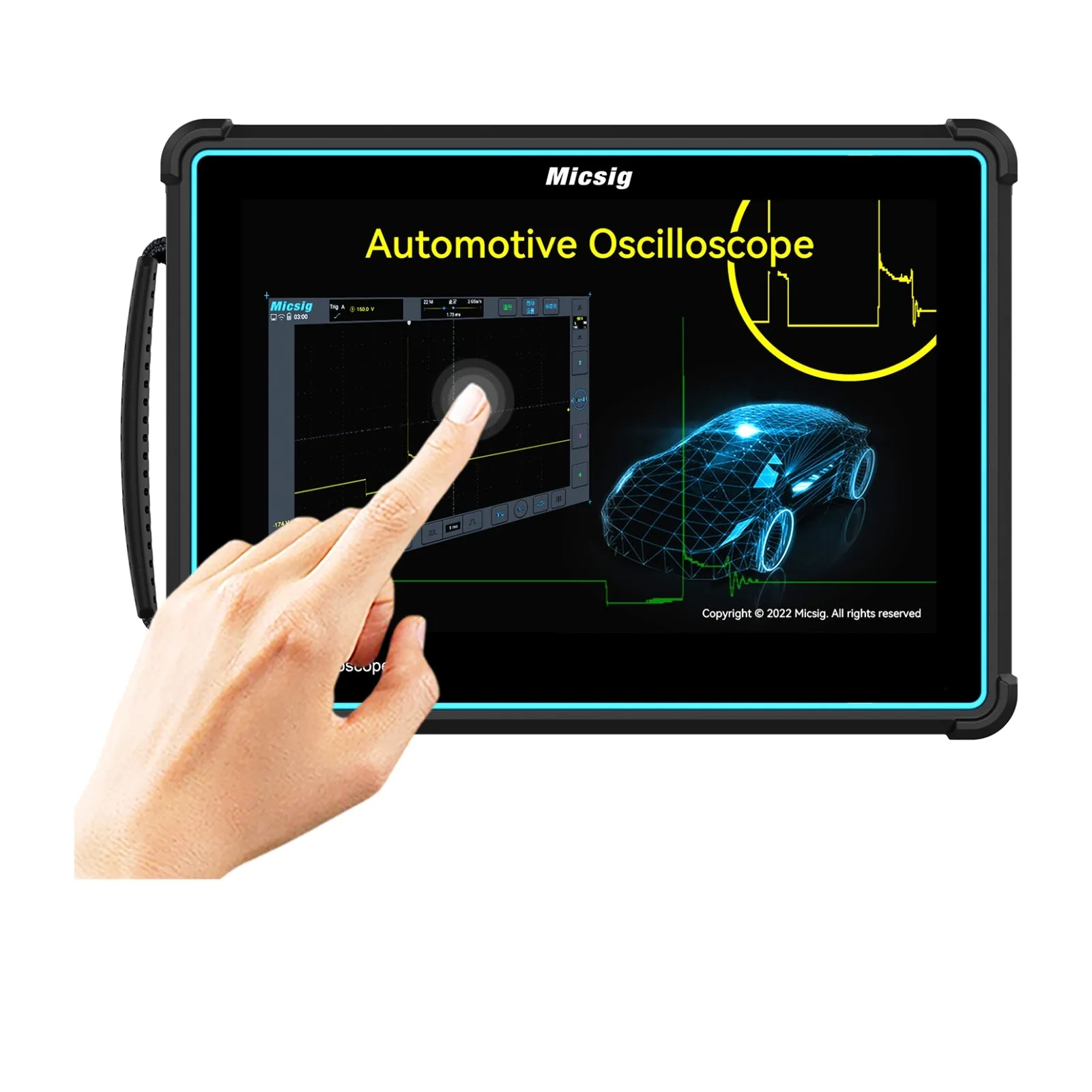

The Micsig ATO1004 Automotive Oscilloscope is a a state-of-the-art digital oscilloscope with a large 10.1-inch LCD display and intuitive touch screen interface. Equipped with integrated automotive diagnostic software, this oscilloscope offers a comprehensive range of diagnostic tests specifically designed for the automotive industry.
- Charging / Start Circuit Tests: Support 12V & 24V charging/start, Charging Ripple, Cranking Current, and other tests
- Various Sensor Tests: Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.
- Actuators: One press to get signals, Fast and Easy. Support various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.

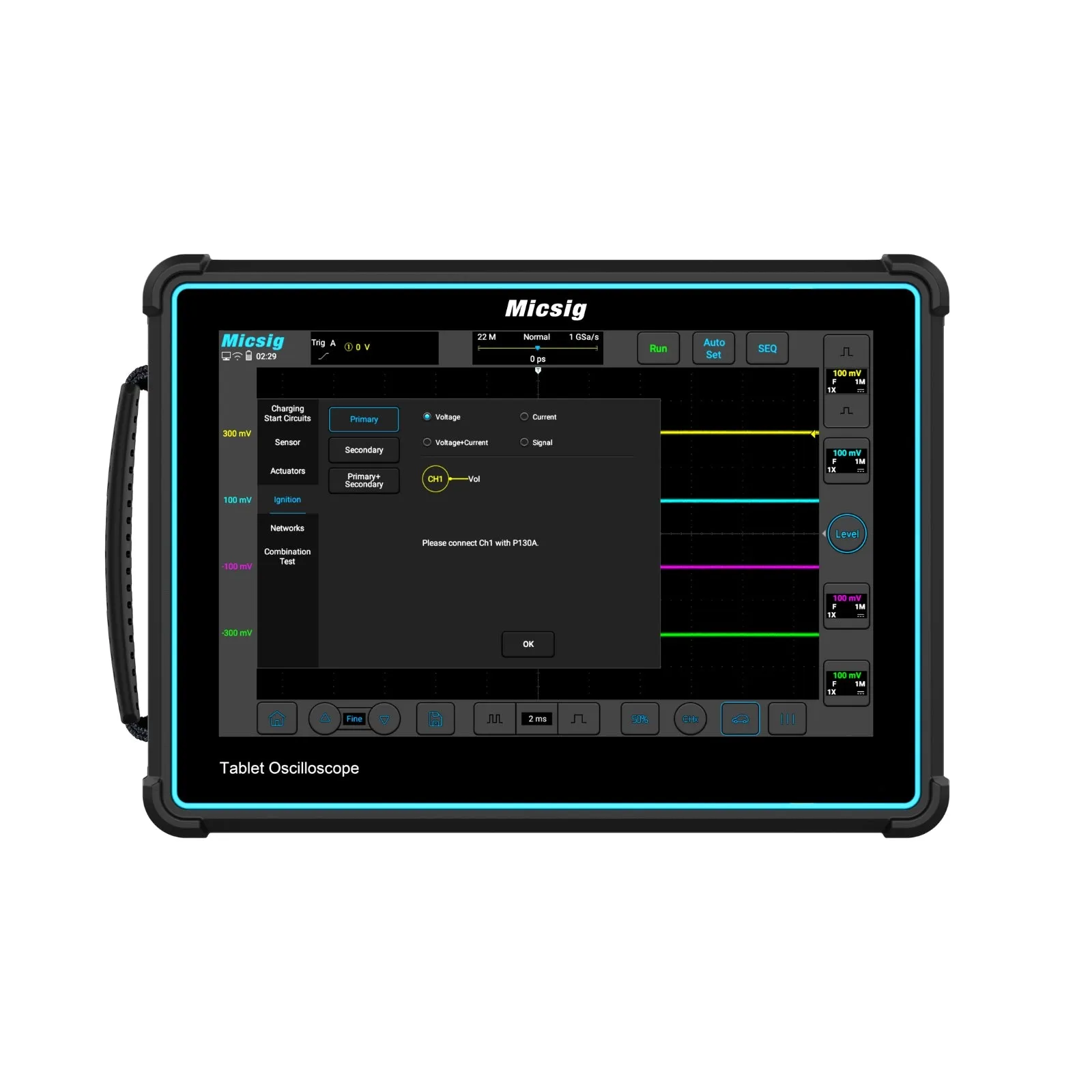

- Ignition: Including Primary ignition, Secondary ignition, and combined Primary Secondary ignition tests.
- Combination Tests: Multiple channels of the oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, or the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.
- Network: CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line
Technical Specifications
|
Model |
ATO1004 |
|
Bandwidth |
100MHz |
|
Analog channel |
4 |
|
Rise Time |
≤3.5ns |
|
Max. Sampling Rate |
1GSa/s |
|
Max. Memory Depth |
110Mpts |
|
Waveform capture rate (Max) |
78,000 wfms/s |
|
Input sensitivity range |
1mV/div ~ 10V/div |
|
Bandwith Filter |
20MHz、 Low Pass (to 30KHz) |
|
Segmented Storage |
Not Support |
|
Input impedance |
1MΩ |
|
Timebase range |
2ns/div ~ 1ks/div |
|
Support Test |
Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests |
|
Bus decoding |
UART、CAN、CAN FD、LIN、SPI、I²C |
|
Interfaces |
Wi-Fi、USB 3.0/2.0 Host、USB type-C、Grounding、HDMI、Trigger out |
|
Storage |
32GB |
|
Display |
10.1 Inch LCD capacitive touch display，1280*800 resolution，11*10 grids |
|
Battery |
7.4V、7500mAh Li-Ion battery / 5H lifetime |
|
Size/Net weight |
265*192*50mm / 1.9kg（with battery） |
Comparsion
| Model |
|
Micsig ATO1004 |
|
Internal Storage |
32 GB |
32 GB |
|
Screen |
8 inch |
10.1 inch |
|
Memory Depth |
70 Mpts |
110 Mpts |
|
Operating System |
Android |
Android |
|
Interfaces |
Type C |
Type C |
|
Multi-function Probe Interface |
UPI |
UPI |
|
Physical Button Control |
Y |
Full Touch Screen |
|
Waveform Capture Rate (Max.): |
130,000 wfms/s |
78000 wfms/s |

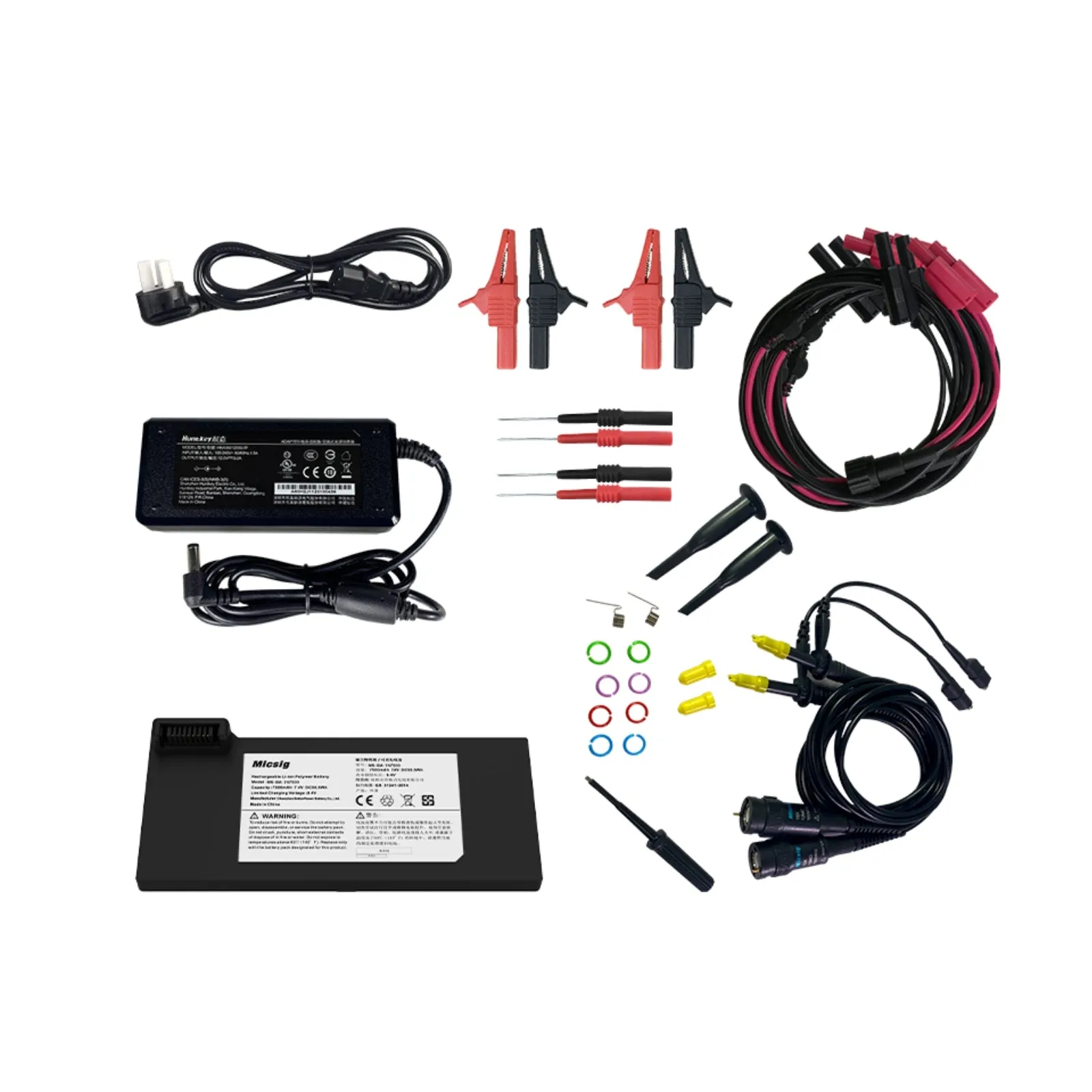

What's Inclued?
- 2 pcs for 10X standard probes (incl. grounding nut, grounding crocodile clip, standard rubber plug)
- 4 x BNC banana lines (4CH)
- 4 x alligator clips (4CH)
- 4 X Flexible needle (4CH)
- Power adapter (12V DC, 4A)
- Power cord
- Smart calibration certificate
- Smart packing list
