The Expert Lite is an entry level battery monitor offered at a very competitive price.
The Expert Lite is compatible with lead based and Lithium batteries (LiFePO4).

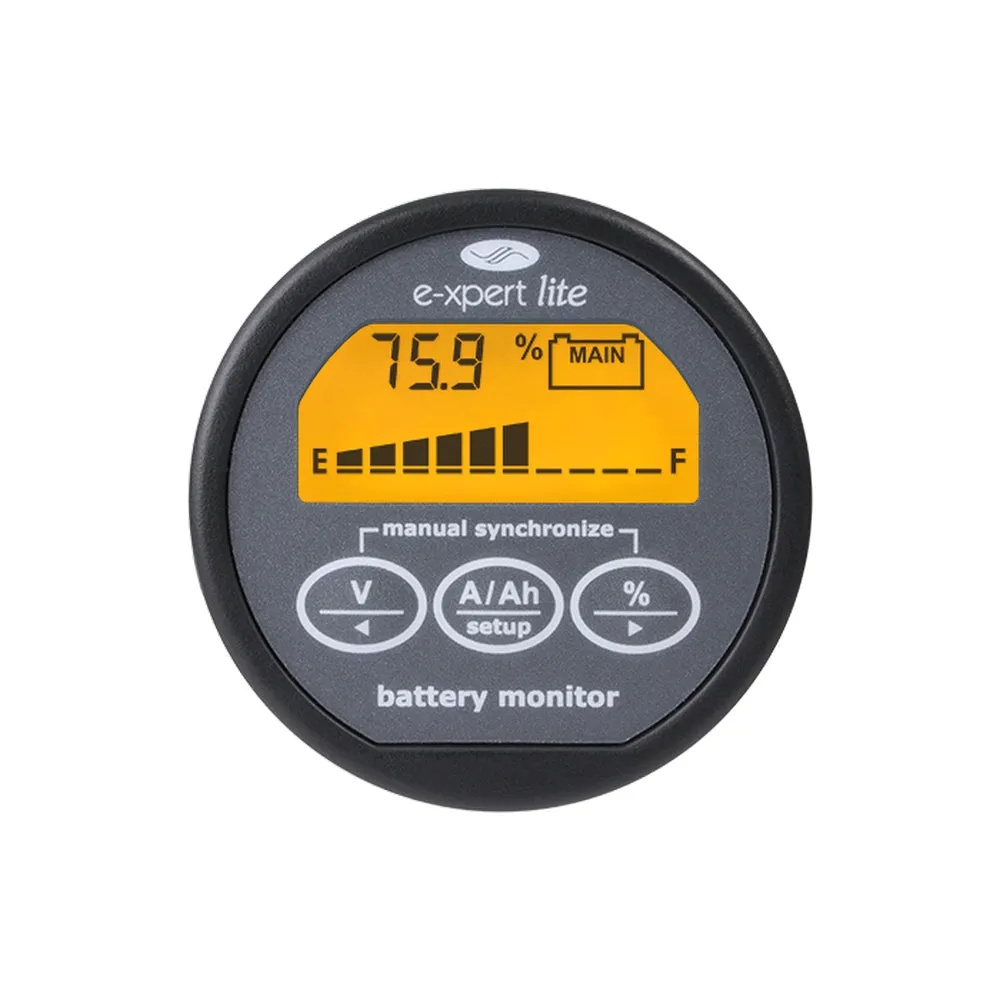

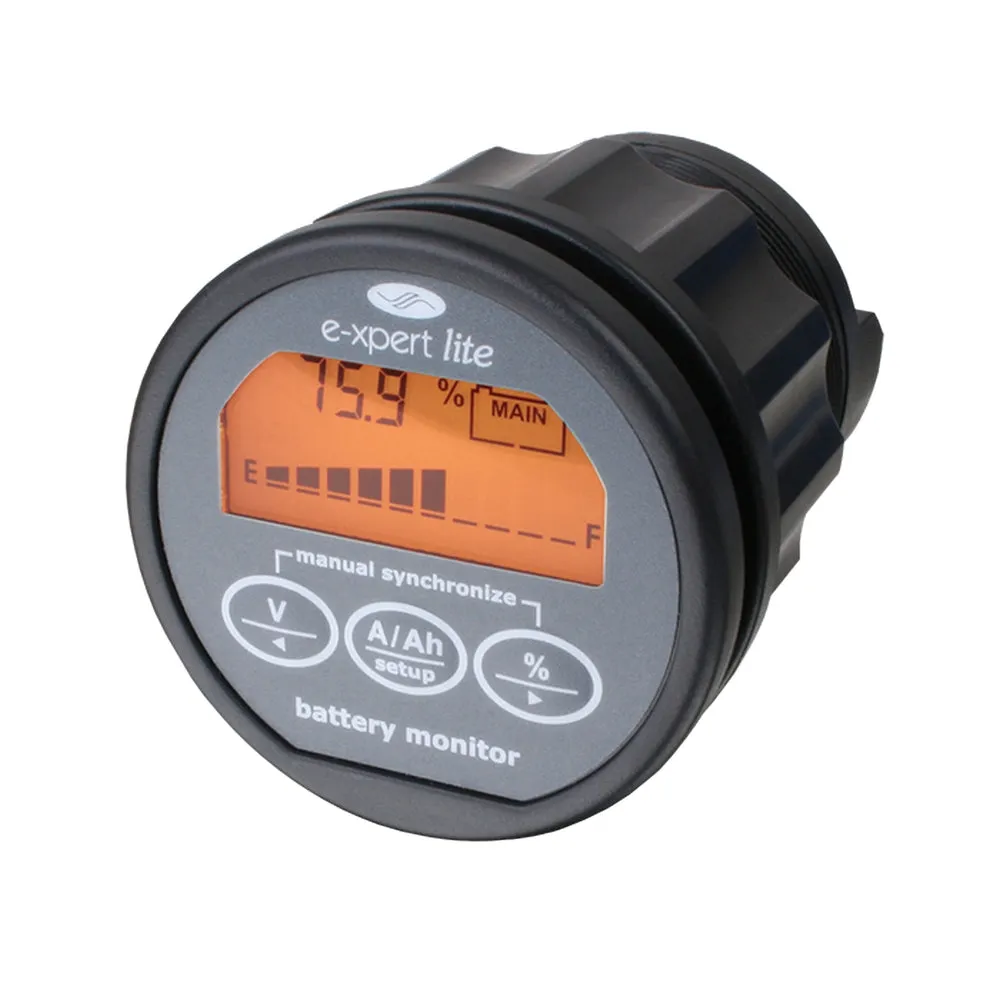

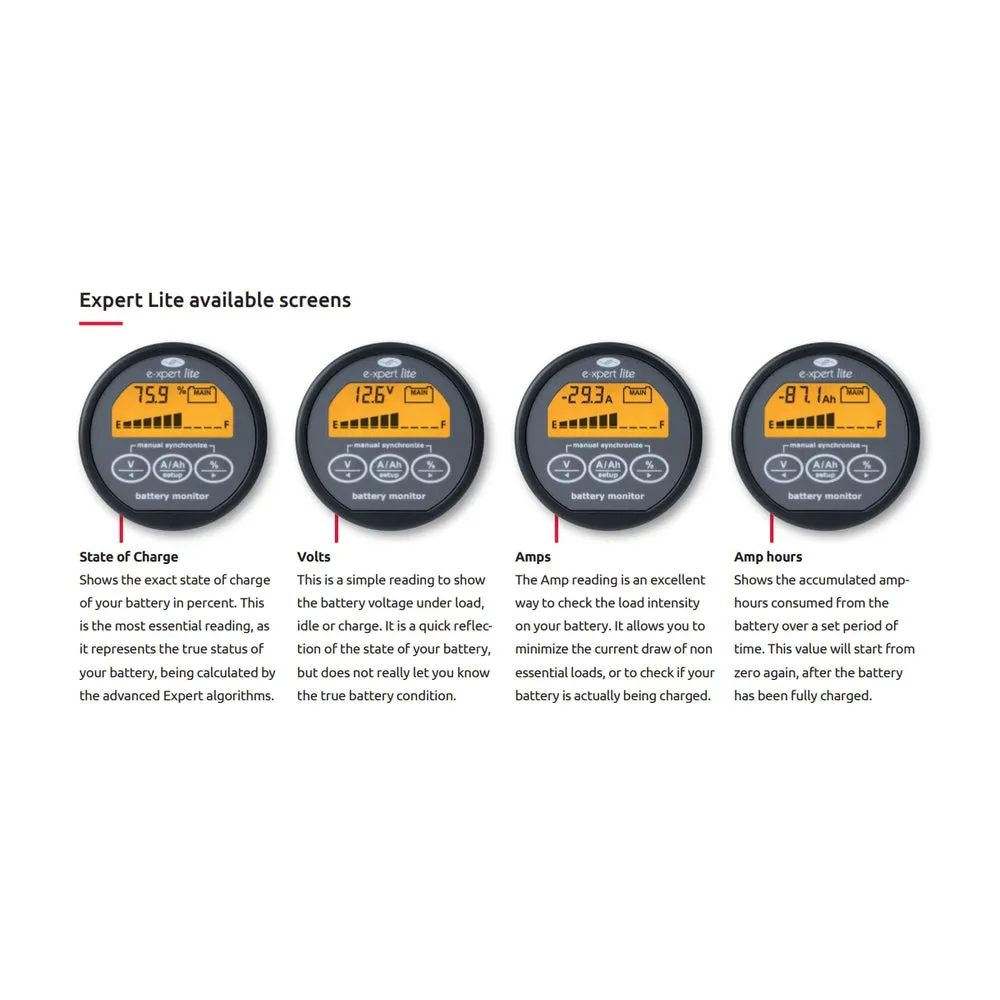

The Expert Lite battery monitor is a perfect fit for users that are only focussed on accurate state of charge readout and easy setup. The Expert Lite battery monitor selectively displays battery voltage, charge- and discharge current, consumed amphours and the remaining battery capacity.
Using the internal alarm relay, it is possible to for example start a generator once the battery state of charge has reached a certain discharge level.
The Expert Lite is easy to install and user friendly in operation. The monitor comes standard with a high precision 500A (350A continuous) shunt and a very clear installation and operating instruction manual.
- Read your battery bank like a fuel gauge
- Provides critical information about the status of your battery bank
- Displays voltage, current, consumed amphours, remaining battery capacity
- Two battery inputs
- Large display with backlight
- Quick nut mounting construction
- Programmable alarm relay
- Shunt selection capability, enables flexible system integration
- Splash proof frontpanel

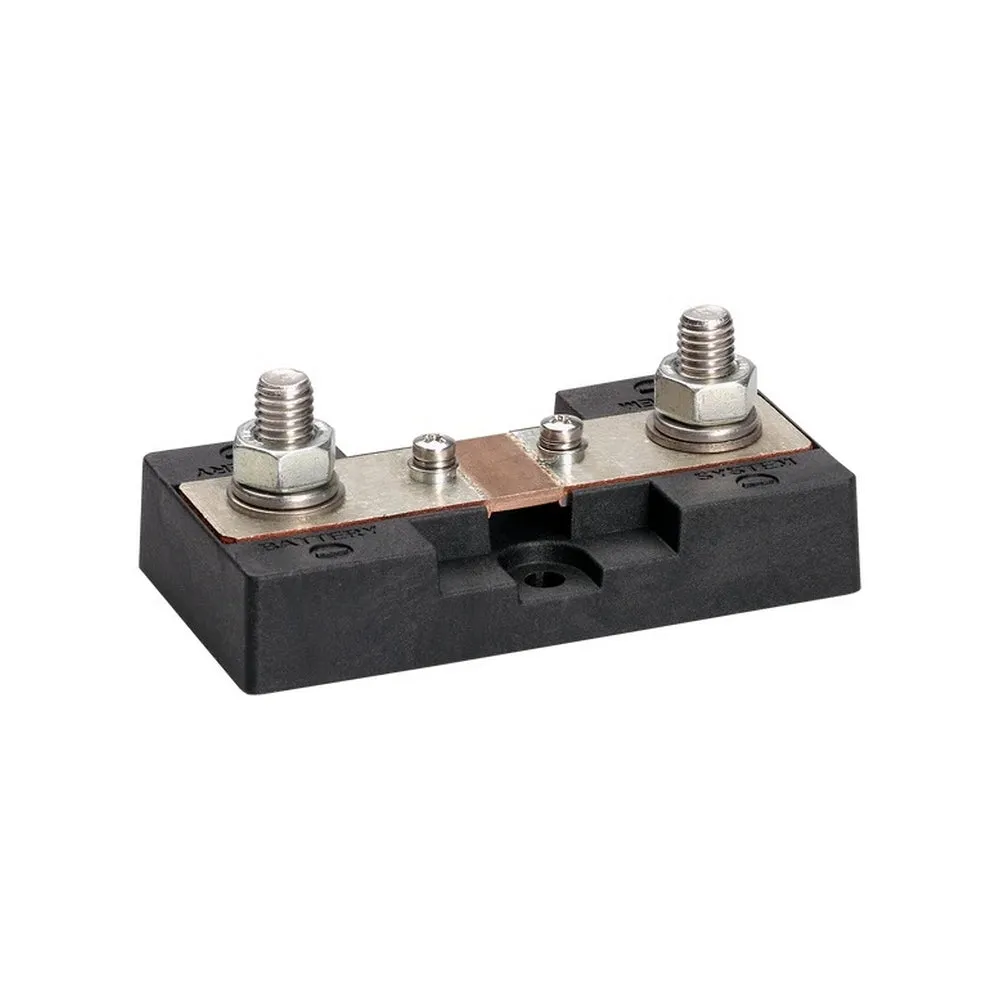

- 500 Amp shunt included
- CE and e-mark certified
- 2 year warranty
