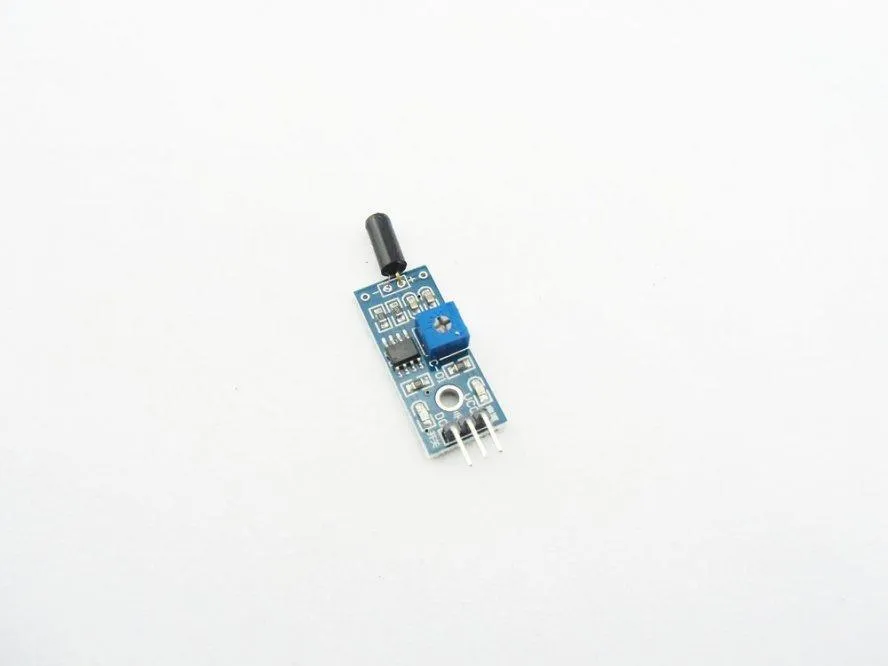

This Vibration Sensor uses the SW-18015P from MEC to measure the vibration. It can be triggered from any angle or position and is often used for flex, touch, vibration and shock measurements. It is suitable for a small current trigger circuit that supplies 3.3V to 5V.

There is an on-board potentiometer to adjust the threshold of vibration. It outputs logic HIGH when this module is not triggered while logic Low when triggered.

Application Idea

• Automobiles alarm.
• Movement detection.
• Vibration detecting Applications

Features

• The default state of the switch is open
• Digital output
• Supply voltage:3.3V-5V
• On-board indicator LED to show the results
• On-board LM393 chip
• Dimension: 3.2cm x 1.4cm
