Product Details
＋
Von Duprin RX350 (35A Series) Grade 1Dummy Push Pad with Request to Exit Switch and Smooth Surface Case

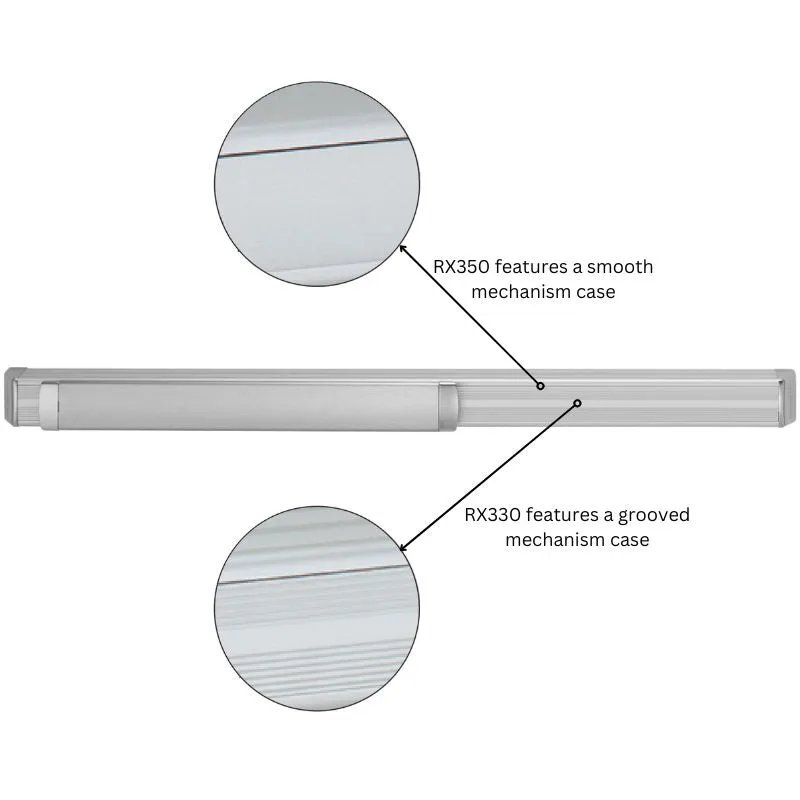

The RX350 bar features an active push pad with a monitoring switch or “request to exit” switch, used to inhibit alarms for authorized exiting. The 350 smooth outer case are designed as companion units for series 33A, 35A, 98, and 99 exit devices.
The internal SPDT switch should not be used to control a load, but as a signaling switch.
Product Specs
| Manufacturer | Von Duprin |
| SKU | RX350 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| ANSI Number | ANSI A156.3 - 2014 |
| BAA Qualified | Yes |
| Limited Warranty | 1 Year |
| Fire Rated | No |
| ADA Compliance | No |
Technical Specifications
| Physical Appearance | Narrow Stile Pushpad |
| Device Type | Rim |
| Device Length | 36" or 48" |
| Minimum Door Openings | 3' (914mm) - 2'6" (762mm) to 3' (914mm) 4' (1219mm) - 3'1" (940mm) to 4' (1219mm) |
| Hand | Non-Handed |
| Switch Type | Request to Exit |
| Fire Rated | No |
| SPDT Switch | 0.5 ampere @ 24VDC |
| Product Type | Dummy Exit Devices |
